Point Map

Application Scenario

You can use a point map to generate data as geometric points within the range of a geographic coordinate system, primarily for displaying spatial distribution within a geographic area.

Basic Requirement

The following table shows the basic requirements for a point map.

Chart Feature

A point map is suitable for displaying the distribution of one or multiple sets of data in geographic space.

Data Preparation

1. Log in to the system as the admin, click My Analysis, select a folder, and click New Subject, as shown in the following figure.

2. Click Local Excel and click Upload Data, as shown in the following figure.

You can download the sample data Regional Data Analysis.xlsx.

3. Click OK after the data is uploaded, as shown in the following figure.

Component Creation

1. Click Component in the lower left corner, as shown in the following figure.

2. Convert the field Province in the area to be analyzed into a geographic role, as shown in the following figure. For details, see Converting Dimension Fields into Geographic Roles.

Note:

1. If there are indicator fields with latitude and longitude, please refer to the document for specific operations: Converting Indicators to Geographic Roles.

2. If you want to match geographic roles for direct-administered/Taiwan (China), please refer to: Matching Geographic Roles (City) with Direct-administered municipalities/Taiwan.

3. Click Point Map and drag Province (Longitude) into Horizontal Axis, and Province (Latitude) into Vertical Axis.

Graphic Property Setting

Color Setting

1. Drag the indicator Sales into Color, the larger the sales amount, the darker the color.

2. Click Color, and select Modern from Gradient Solution, as shown in the following figure.

3. Click the downward triangle icon on the right side of Sales in Color to set a flashing animation.

Size Setting

1. Drag Sales into Size. The larger the sales amount, the larger the area of the point.

2. Click Size and drag the slider to adjust the radius of the points, as shown in the following figure.

Component Style Setting

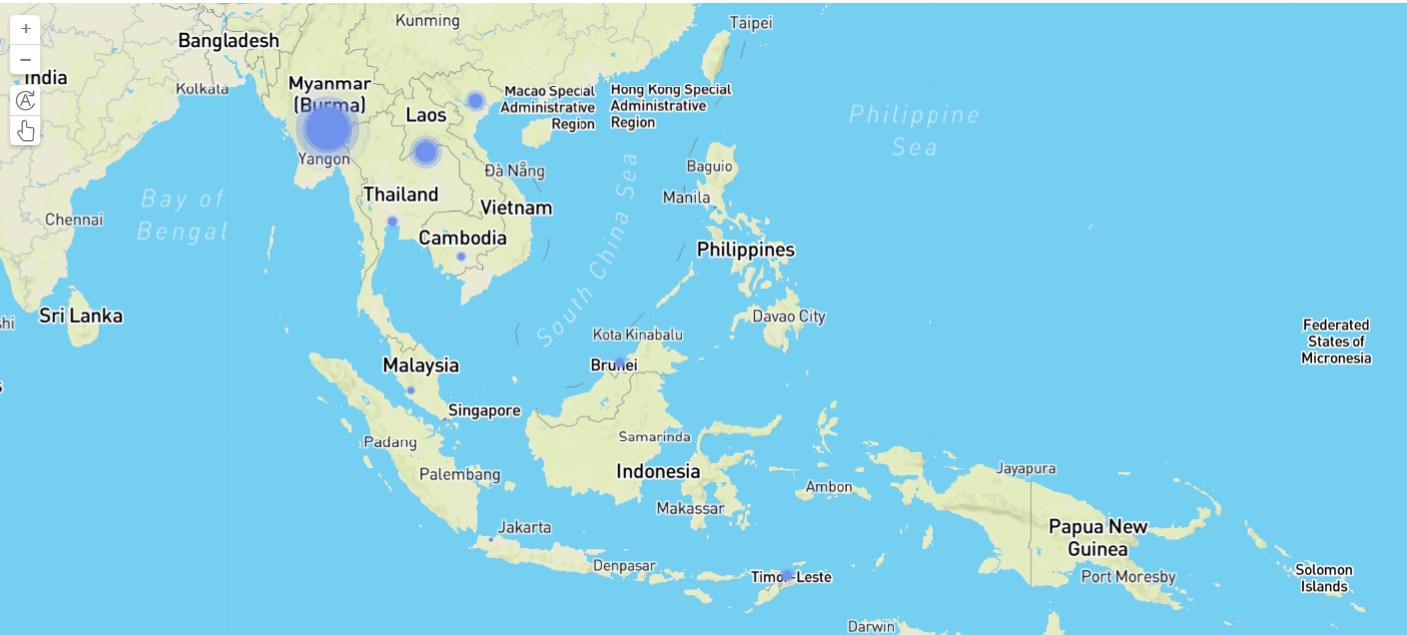

Effect Display

Choose Component Style > Legend and deselect Display All Legends.

Background

Choose Component Style > Background, and set the component background GIS to Custom > Blue.

Effect Display

On PC

On Mobile Terminals

The following figure shows the preview effect on the DataAnalyst and on HTML5 apps.

You may want to use other shapes to display special points, such as the red triangle for the province with the highest sales volume in section "Example" in this document.

1. After making a point map according to section "Example" in this document, drag Sales into Shape, and set corresponding shapes to different data intervals.

2. Click Color, and set colors according to the data intervals.
