Directory Style

Version

Functions

Directory Style settings include Directory Default Status, Sidebar Default Status, and Directory Cover.

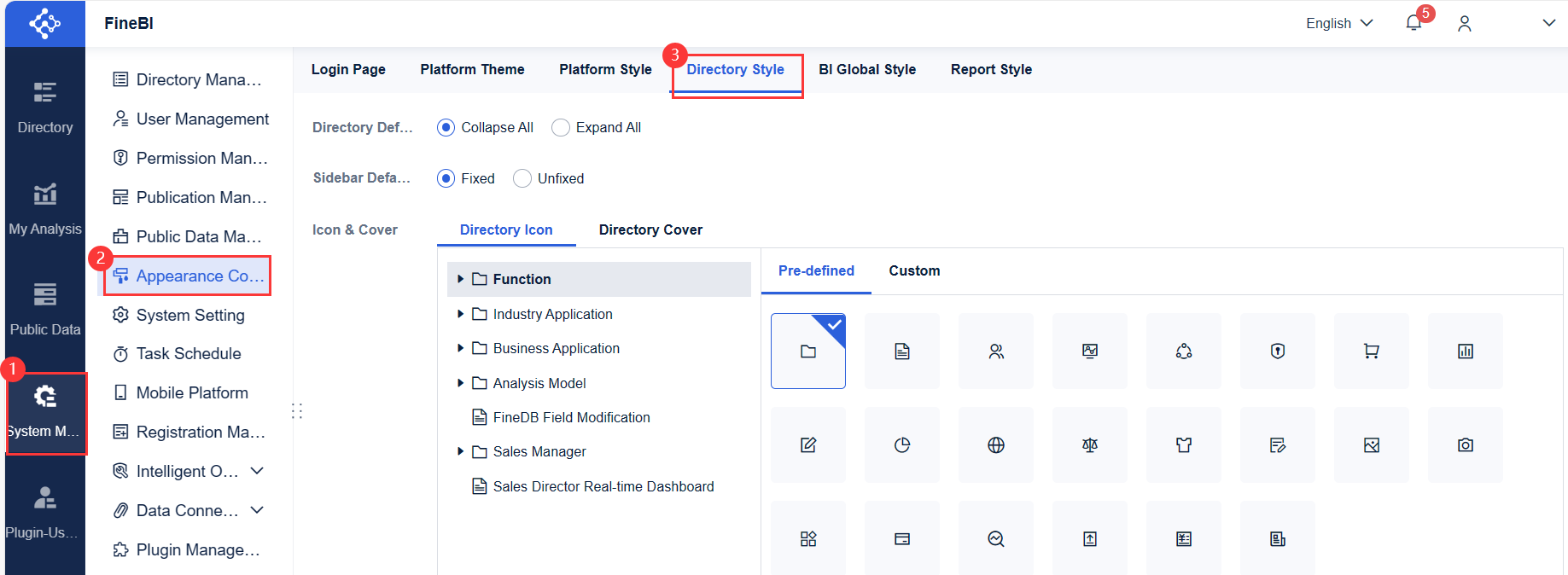

Log in to the FineBI system as the admin and choose System Management > Appearance Configuration > Directory Style to set the directory style.

There are two options for Directory Default Status: Collapse All (default value) and Expand All.

Collapse All

If Collapse All is selected, the first level directory folders and all template nodes under the root directory are displayed by default.

When you open other directory nodes or switch between directories and other tabs, the previously opened directory nodes remain expanded.

Expand All

If Expand All is selected, directories and templates of all levels are expanded under the directory tree.

When you switch between directory nodes or switch between directories and other tabs, the previously expanded/collapsed directory nodes remain unchanged.

Note:

If Platform Theme is switched to Modern, the templates under the root directory and directory nodes are displayed in the directory tree. Templates under directory nodes are displayed on the right.

The FineBI project allows setting the default status of the directory sidebar. The default is Fixed.

Note:

This setting is applied only to the initial status of the sidebar under the Directory tab and does not affect the sidebar under the System Management tab. The side bar of the System Management tab is always Fixed.

Fixed

If Fixed is selected, the directory sidebar is displayed under the Directory tab by default.

You click in the upper right corner of the sidebar to collapse the sidebar.

Note:

If you click when accessing the platform in this browser, the directory sidebar remains unfixed for the next login. If you do not set the sidebar status by clicking , Sidebar Default Status is used.

Unfixed

If Unfixed is selected, the directory sidebar is collapsed under the directory tab by default.

Hover your cursor over the  button to display the directory sidebar. Click in the upper right corner of the directory sidebar to keep the sidebar visible.

Note:

If you click when accessing the platform in this browser, the directory sidebar remains fixed for the next login. If you do not set the sidebar status by clicking , Sidebar Default Status is used.

You can set the icons for the directory. There are two types of icons: pre-defined and custom icons.

Using Pre-defined Icons

Log in to the FineBI system as the admin, choose System Management > Appearance Configuration > Directory Style > Directory Icon, and select the template/directory that needs to be set.

There are 22 built-in pre-defined icons. You can select desired ones as the directory icons.

After the directory style is set, click Directory in the FineBI system to view the set directory icon.

Customizing Icons

Uploading Custom Directory Icon

Log in to the decision-making platform as the admin, choose System Management > Appearance Configuration > Directory Style > Directory Icon, and click Custom.

Clickand upload an image. You can use it as the directory icon.

Icon size should be 24*24px. It supports JPG and PNG formats.

Customizing Directory Icon

Log in to the FineBI system as the admin, and choose System Management > Appearance Configuration > Directory Style > Directory Icon.

Select the template/directory that needs to be set, and then choose the desired custom icon.

After the directory icon is set, click Directory in the FineBI system to view the effect.

Deleting Custom Directory Icon

Log in to the FineBI system as the admin, choose System Management > Appearance Configuration > Directory Style > Directory Icon, and click Custom.

Click the Edit button, select the icon to be deleted, delete it, and click Complete.

You can set the cover for templates under the directory. There are pre-defined covers and custom covers.

Using Pre-defined Cover

Log in to the FineBI system as the admin, click System Management > Appearance Configuration > Directory Style > Directory Cover, and select the template that needs to be set.

There are 25 built-in pre-defined covers. You can select the desired one to set the directory cover.

Note:

You can only set the directory cover for templates (directory nodes are not supported).

If Platform Theme is switched to Modern, the display effect of directory cover is as follows.

Note:

Theme switch does not affect the set directory cover.

Customizing Covers

Uploading Customized Directory Cover

Log in to the FineBI system as the admin, and choose System Management > Appearance Configuration > Directory Style > Directory Cover.

Select the template under the directory and click Custom.

Clickand upload an image. You can use it as the directory cover.

Cover size should be 24*24px. It supports JPG and PNG formats.

Customizing Directory Cover

Log in to the FineBI system as the admin, and choose System Management > Appearance Configuration > Directory Style > Directory Cover.

Select the template/directory that needs to be set and choose the customized cover to set the directory style.

Note:

You can only set the directory cover for templates (directory nodes are not supported).

After the directory style is set, switch Platform Theme  to Modern, and click Directory in the decision-making platform to view the set directory cover.

Note:

Theme switch does not affect the set directory cover.

Deleting Customized Directory Cover

Log in to the FineBI system as the admin, choose System Management > Appearance Configuration > Directory Style > Directory Cover, and click Custom.

Click the Edit button, select the cover to be deleted, delete it, and click Complete.
