Overview
Version
FineBI Version | Functional Change |
6.0 | / |
Functions

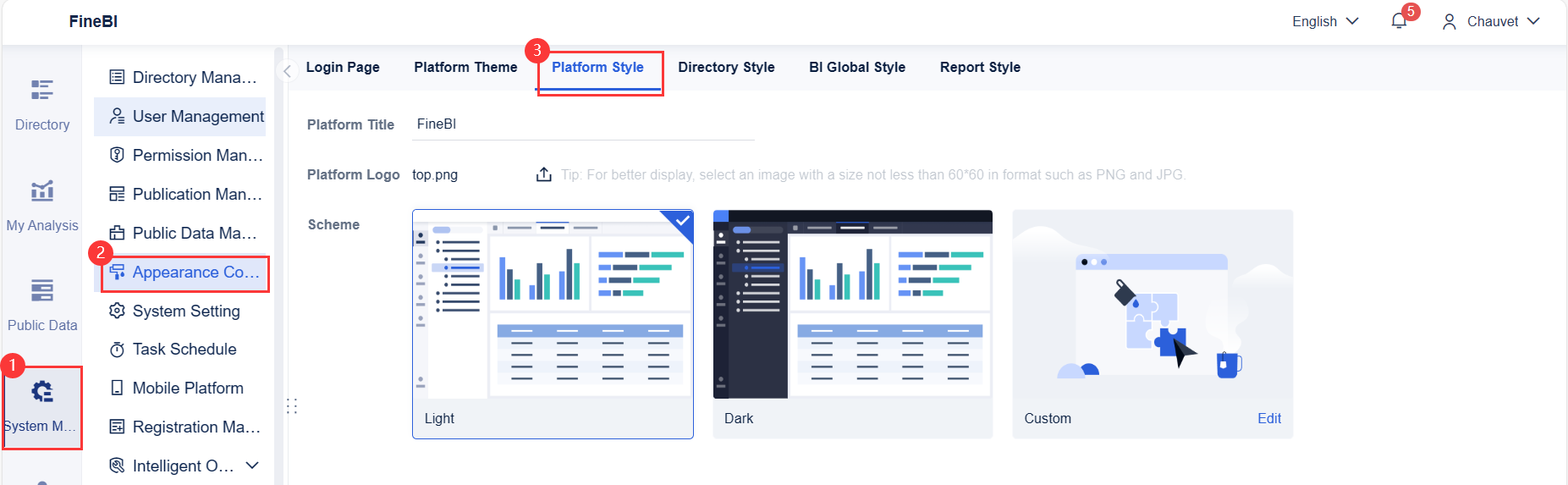

Log in to the decision-making platform as the admin, choose System Management > Appearance Configuration > Platform Style, and go to the platform style setting interface.
Platform style settings include Platform Title, Platform Logo, and Scheme.
Platform Title
Platform Title specifies the name of the browser tab when the platform is opened in the browser. The default platform title is FineBI.
On the Platform Style tab page, you can directly modify the platform title in the text box on the right side of Platform Title.
Platform Logo
You can customize the platform logo image. The image supports PNG, JPG and other formats. The image size should not be smaller than 60×60px.
On the Platform Style tab page, click on the right side of Platform Logo to upload the logo image.
Note:1. If Custom is selected as Scheme (see section “Scheme”), Platform Logo can be displayed in two ways.
Top Heading Style | Logo Size |
Integrated Background | The platform logo height is automatically adjusted to 30 and its width is adjusted according to the aspect ratio. |
| Separated Background | The platform logo is displayed at 30×30px. If the width and height of the image are not equal, the image remains the aspect ratio and the platform theme color is used to fill the remaining space. |
3. The system does not allow hiding the platform logo. To hide the logo, you can upload a transparent image.
Scheme
Scheme refers to the configuration of platform colors. Built-in color schemes include Light, Dark, and Custom.
Light
On the Platform Style tab page, set Scheme to Light.
Dark
On the Platform Style tab page, select Scheme to Dark.
Customization
On the Platform Style tab page, click Edit in the bottom right corner of the Custom scheme.
After clicking the Edit button, you can customize Platform Style on the Edit Color Scheme interface.
There are two options for Frame Style: Integrated Background and Separated Background. They are different in the title background.
Integrated Background
Set Frame Style to Integrated Background. You can set items such as Title Bar Background, Title Bar Text, Platform Theme Color, and Left Navigation Background.
If you set Title Bar Background to Color, the title bar background is filled by the selected color. The corresponding effect of each color setting is displayed in real-time on the page. After completing the settings, click Save.
If you set Title Bar Background to Picture, the title bar background is filled by uploaded image. Other color settings are the same as those in the color title bar background.
Separated Background
Select Frame Style to Separated Background. You can set items such as Title Bar Background, Title Bar Text, Platform Theme Color, and Left Navigation Background.
The corresponding effect of each color setting shows on the real-time interface. After completing the settings, click Save.
