Version
| Version | Function Changes |
|---|---|
| 11.0.1 | Add collapse, expand, submit interface |
getWidgetByName
| Method | getWidgetByName(name) | Get the widget in the parameter pane, and use it in combination with the widget interface |
|---|---|---|
| Parameter | name: string | widget name, string |
| Return value | object | widget object, need to be used in conjunction with the attributes/methods of the widget |
| Example | Example 1: If the acquired parameter pane is defined as parameterContainer, get the drop-down box widget comboBox0 on the parameter pane Example 2: Get the drop-down box widget comboBox0 on the report parameter pane _g().getParameterContainer().getWidgetByName("comboBox0"); | |

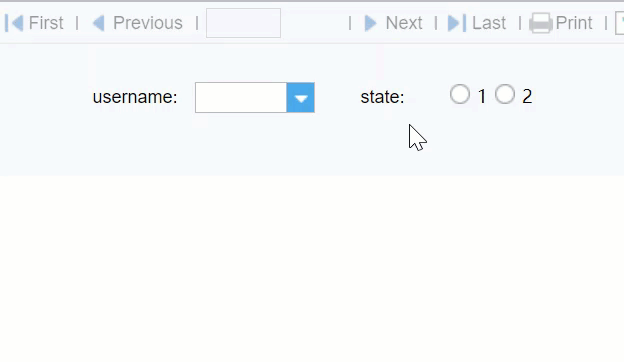

Application example | After obtaining the widget on the parameter pane, assign it a value to realize the linkage of the widget value in the parameter pane: Click to download the template: Get the widget on the parameter pane.cpt
| |
| Mobile | Support mobile terminal | |
collapse
| Method | collapse() | Collapse parameter pane |
|---|---|---|
| Parameter | - | - |
| Return value | void | |
| Example | Example 1: If the acquired parameter pane object is defined as parameterContainer, collapse the parameter pane Example 2: Collapse the parameter pane after getting it _g().getParameterContainer().collapse(); | |

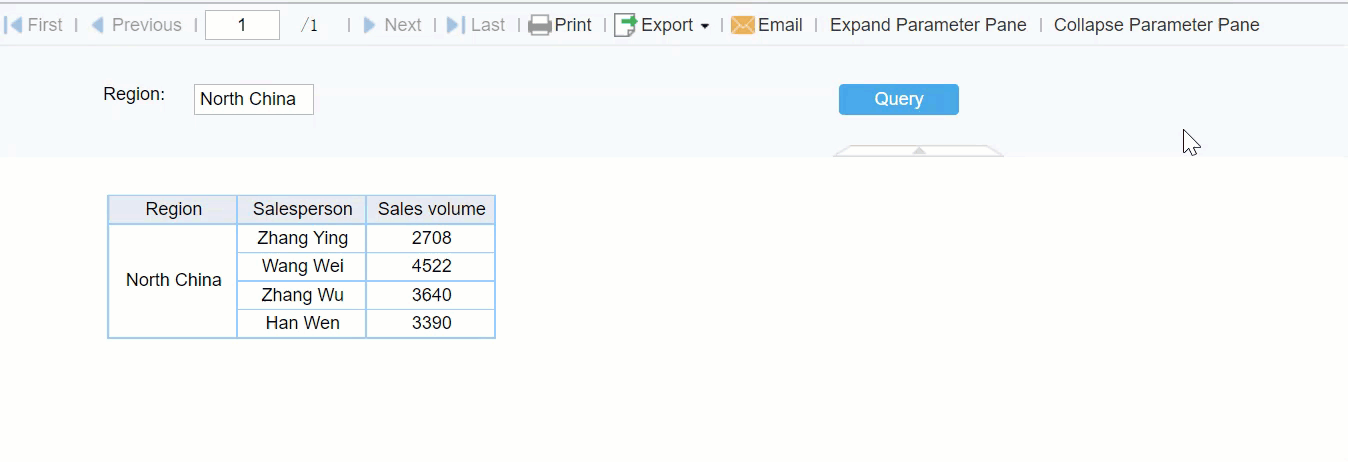

Application example | Click the toolbar button to collapse the parameter pane: Click to download the template: Customize toolbar buttons to control the expansion and collapse of the parameter pane.cpt
| |
| Mobile | Support mobile terminal | |
expand
| Method | expand() | Expand parameter pane |
|---|---|---|
| Parameter | - | - |
| Return value | void | |
| Example | Example 1: If the acquired parameter pane object is defined as parameterContainer, expand the parameter pane Example 2: Expand the parameter pane after getting it _g().getParameterContainer().expand(); | |
Application example | Click the toolbar button to expand the parameter pane: Click to download the template: Customize toolbar buttons to control the expansion and collapse of the parameter pane.cpt
| |
| Mobile | Support mobile terminal | |
submit
| Method | submit() | Query after submitting automatically |
|---|---|---|
| Parameter | - | - |
| Return value | void | |
| Example | Example 1: If the acquired parameter pane object is defined as parameterContainer, query after submitting automatically Example 2：The report query after submitting automatically _g().getParameterContainer().submit(); | |

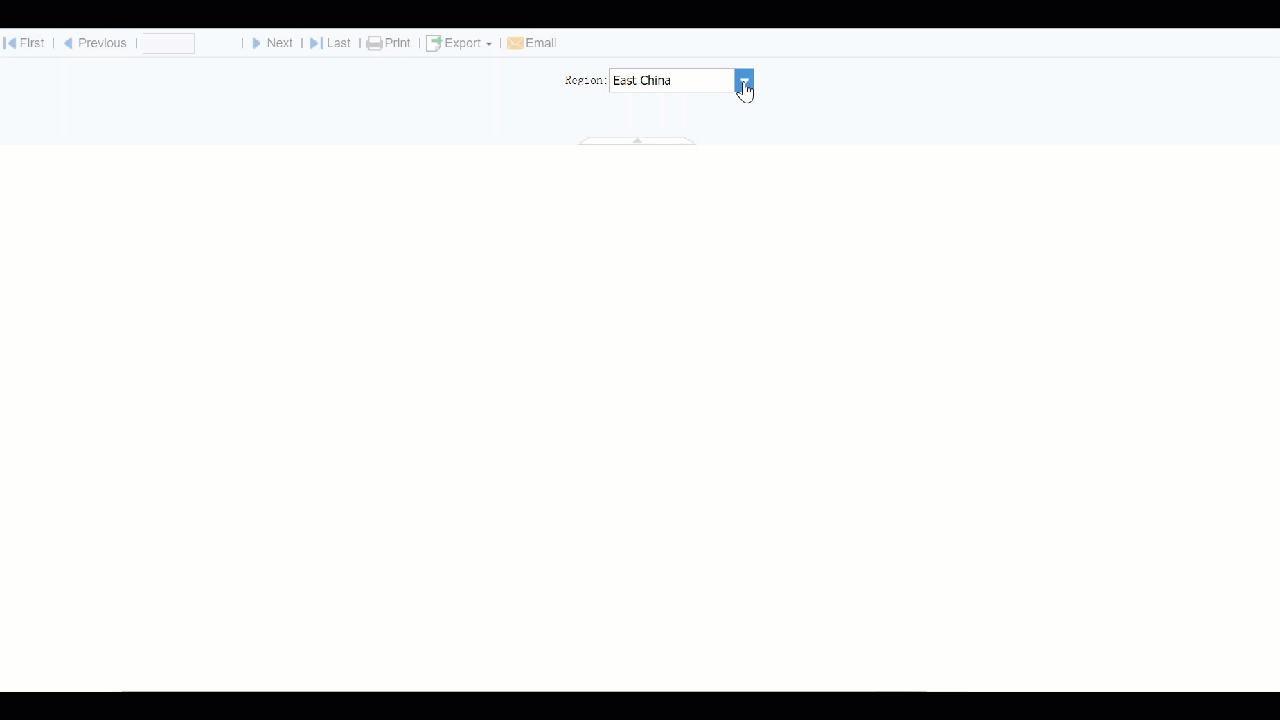

Application example | After selecting the value from the drop-down box in the parameter pane, you can query without clicking the query button, as shown in the following figure: Click to download the template: Automatic query after submitting.cpt
| |
| Mobile | Support mobile terminal | |
