Displaying the Top N Dynamically

Effect

After ranking the sales volume, you can filter out the top 30% of stores by sales volume.

When the number of stores is 20, the top six are filtered out.

When the number of stores is 30, the top nine are filtered out.

Implementation Method

First rank the sales volume of each store, then filter out the needed stores.

This example uses Store Sales Statistics in Public Data > Department Data > Sales.

Create a subject and add data.

Adding Calculation Indicators

1. Calculate Sales Volume of each store.

Note:

Fields in the formula box need to be selected from the left area and cannot be manually entered.

2. Rank stores by Sales Volume.

Add a calculation field Total Number of Stores by using the formula DEF to calculate the total number of stores.

Creating a Table Component

1. Drag Shop Number into Dimensions, and Sales Volume, Ranking, and Total Number of Stores into Indicators.

Select Group Table as Chart Type.

2. Move the cursor over the Shop Number field and click  > Filter.

Filtering out the Top 30% of Stores by Sales Volume

Set the filter condition: Ranking(Sum)<=0.3*Total Number of Stores(Sum)

Note:

Fields in the formula box need to be selected from the left area and cannot be manually entered.

The top 30% of 30 stores are the top nine ones in the Sales Volume ranking.

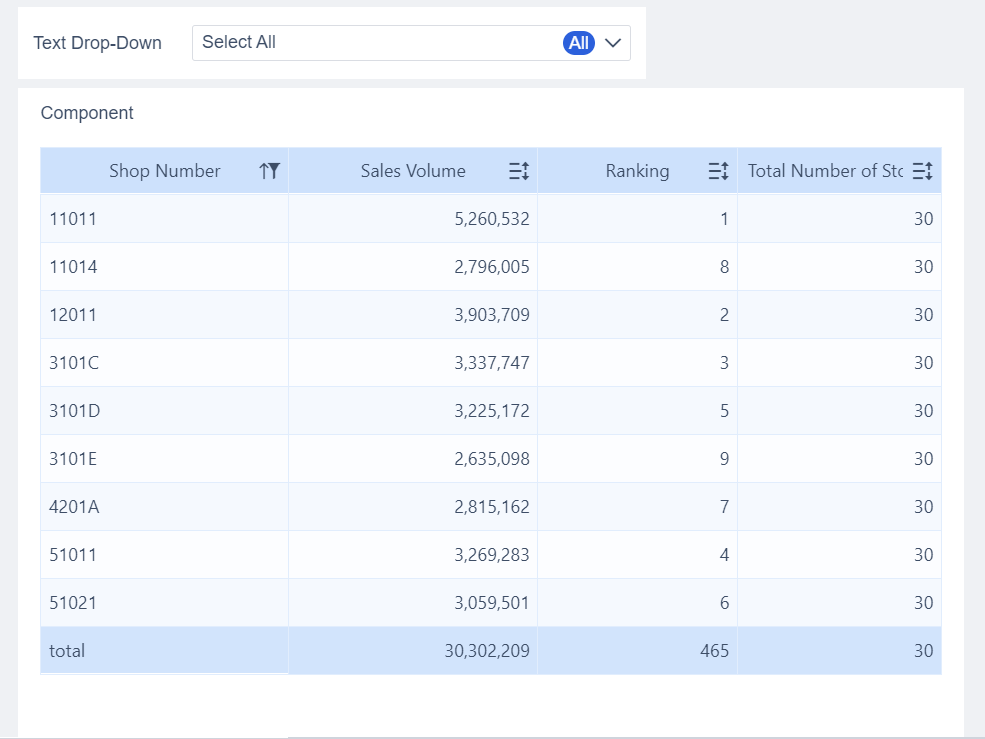

The filtered effect is shown in the following figure.

Adding a Text Filter Component

1. Go to the dashboard editing interface and drag the just created component into the dashboard.

2. Add a Text Drop-down Filter Component.

Select Shop Number under Store Sales Statistics and drag it to the field column.

Filter 20 stores in Text Drop-Down, and the ranking shows the top six.

Demonstration

See section "Effect".

Filtering out the Top 50% of Stores by Sales Volume

The ROUND function returns the nearest integer after calculation, and the formula is Ranking(Sum)<=ROUND(Total Number of Stores(Sum)*0.5,0).

The filter condition is shown in the following figure.

Note:

Fields in the formula box need to be selected from the left area and cannot be manually entered.

The system automatically filters out the top 50% of stores by Sales Volume in the preview area, and the filtered effect is shown in the following figure.
